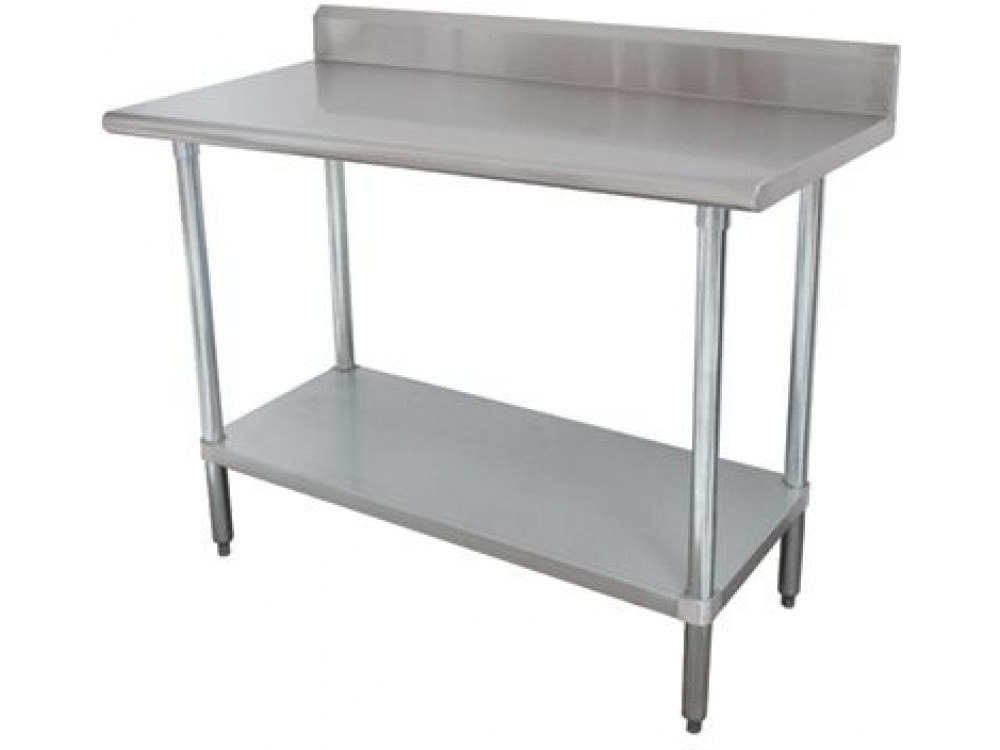

Advance Tabco KMG-367 36" x 84" 16 Gauge Standard 5" Backsplash with Undershelf Work Table

More Views

Product Description

Details

Standard Features:

Top is furnished with a 1 5/8" sanitary rolled rim edge on front
1 5/8" square side edges
a 5" splash with a 1" return on the rear side.
TWO hat channels stud welded to reinforce and maintain a level working surface
30" and 36" wide tables supplied with THREE hat channels.
Pre-engineered welded angle adapters insure ease of future drawer installation.
Aluminum die cast "leg-to-shelf" clamp secures shelf to leg eliminating unsightly nuts and bolts
Undershelf is adjustable.
CONSTRUCTION:
All TIG welded.
Exposed weld areas polished to match adjacent surfaces.
Entire top mechanically polished to a satin finish.
Top is sound deadened.
Roll formed embossed galvanized hat channels are secured to top by means of structural adhesive and weld studs.
Gussets welded to support hat sections.

MATERIAL:

KMG-SERIES: Galvanized Legs & Undershelf
TOP: 16 gauge stainless steel type "304" series.
SHELF: 18 gauge galvanized steel.
LEGS: 1 5/8" diameter tubular galvanized steel.
1" adjustable plastic bullet feet.
Galvanized steel gussets.

Specific Features:

Model No: KMG-367
Work Table
36" x 84"
16 gauge 304 stainless steel top with 5"H backsplash
18 gauge galvanized adjustable undershelf
Galvanized legs with adjustable plastic bullet feet
NSF
Product Dimensions: 36"W x 84"D x "H

Product Description

Details

Standard Features:

Top is furnished with a 1 5/8" sanitary rolled rim edge on front
1 5/8" square side edges
a 5" splash with a 1" return on the rear side.
TWO hat channels stud welded to reinforce and maintain a level working surface
30" and 36" wide tables supplied with THREE hat channels.
Pre-engineered welded angle adapters insure ease of future drawer installation.
Aluminum die cast "leg-to-shelf" clamp secures shelf to leg eliminating unsightly nuts and bolts
Undershelf is adjustable.
CONSTRUCTION:
All TIG welded.
Exposed weld areas polished to match adjacent surfaces.
Entire top mechanically polished to a satin finish.
Top is sound deadened.
Roll formed embossed galvanized hat channels are secured to top by means of structural adhesive and weld studs.
Gussets welded to support hat sections.

MATERIAL:

KMG-SERIES: Galvanized Legs & Undershelf
TOP: 16 gauge stainless steel type "304" series.
SHELF: 18 gauge galvanized steel.
LEGS: 1 5/8" diameter tubular galvanized steel.
1" adjustable plastic bullet feet.
Galvanized steel gussets.

Specific Features:

Model No: KMG-367
Work Table
36" x 84"
16 gauge 304 stainless steel top with 5"H backsplash
18 gauge galvanized adjustable undershelf
Galvanized legs with adjustable plastic bullet feet
NSF
Product Dimensions: 36"W x 84"D x "H

Qty:

Availability: In stock

BUY at any time during the 12 month period and your payout is simply the original purchase price less 60% ofthe rent paid.
UPGRADE at any time to equipment better suited for your business.
RETURN the equipment after the 12 month period if you no longer need it.
CONTINUE TO RENT at the end of 12 months with no obligation and continue to enjoy 100% tax deductiblerental payments
EASY OWN at 12 months you can reduce your rental payments by 30% over 36 months and chooseownership at the end of the term for just $1!

Model No: KMG-367, Work Table, 36" x 84", 16 gauge 304 stainless steel top with 5"H backsplash, 18 gauge galvanized adjustable undershelf, Galvanized legs with adjustable plastic bullet feet, NSF, Product Dimensions: 36"W x 84"D x "H

Resources and Downloads for Advance Tabco KMG-367 36" x 84" 16 Gauge Standard 5" Backsplash with Undershelf Work Table

Specification Sheet

Download
