Advance Tabco K7-3-3030-24RL 2-Drain 3-Compartment Super Size Fabricated Sink

Return to Previous Page

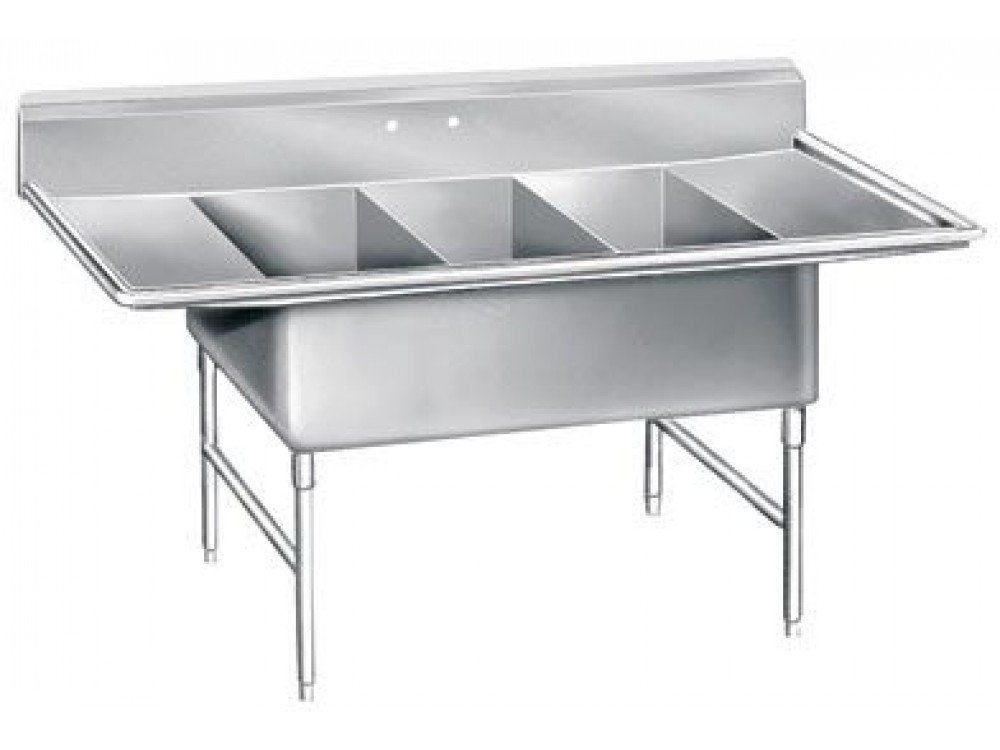

Advance Tabco K7-3-3030-24RL 2-Drain 3-Compartment Super Size Fabricated Sink

More Views

Product Description

Details

Standard Features:

Tile edge for ease of installation.
16 gauge
304 series stainless steel.
14" Deep Bowls.
Fabricated design.
Extra Large Sink bowls fabricated to meet NSF specifications with a 3/4" radius.
Placement of the welded leg assembly insures stability and furnishes direct support of the column load requirements for the entire sink unit.
Cross bracing on side legs.
Full skirt design.

CONSTRUCTION:

All TIG welded.
Welded areas blended to match adjacent surfaces and to a satin finish.
Gussets welded to a die-embossed reinforcing channel.

MECHANICAL:

Faucet holes provided.
Faucet holes on 8" centers.
Faucets are not included (see accessories).
Waste drains are 1 1/2" IPS basket type and are included.
14" Water Level.

MATERIAL:

Entire unit is 16 gauge type "304" series stainless steel.
LEGS are 1 5/8" diameter heavy gauge tubular stainless steel with stainless steel gussets and 1" adjustable stainless steel bullet feet.

Specific Features:

Model No: K7-3-3030-24RL
Super Size Fabricated Sink
3-compartment
With left & right-hand drainboards
30" front-to-back x 30"W sink compartment
14" deep
With tile edge splash
Full skirt
Stainless steel bullet feet
16 gauge 300 series stainless steel
24" drainboards
Overall 36" F/B x 138" L/R
Bowl Dimensions: 30" x 30" x 14"
Product Dimensions: 24"W x "D x "H

Product Description

Details

Standard Features:

Tile edge for ease of installation.
16 gauge
304 series stainless steel.
14" Deep Bowls.
Fabricated design.
Extra Large Sink bowls fabricated to meet NSF specifications with a 3/4" radius.
Placement of the welded leg assembly insures stability and furnishes direct support of the column load requirements for the entire sink unit.
Cross bracing on side legs.
Full skirt design.

CONSTRUCTION:

All TIG welded.
Welded areas blended to match adjacent surfaces and to a satin finish.
Gussets welded to a die-embossed reinforcing channel.

MECHANICAL:

Faucet holes provided.
Faucet holes on 8" centers.
Faucets are not included (see accessories).
Waste drains are 1 1/2" IPS basket type and are included.
14" Water Level.

MATERIAL:

Entire unit is 16 gauge type "304" series stainless steel.
LEGS are 1 5/8" diameter heavy gauge tubular stainless steel with stainless steel gussets and 1" adjustable stainless steel bullet feet.

Specific Features:

Model No: K7-3-3030-24RL
Super Size Fabricated Sink
3-compartment
With left & right-hand drainboards
30" front-to-back x 30"W sink compartment
14" deep
With tile edge splash
Full skirt
Stainless steel bullet feet
16 gauge 300 series stainless steel
24" drainboards
Overall 36" F/B x 138" L/R
Bowl Dimensions: 30" x 30" x 14"
Product Dimensions: 24"W x "D x "H
